Featuring with industrial-grade IPQ4019/IPQ4029 chipset
Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module
Support 4.940GHz to 5.825GHz Frequency Range
Support 2.400GHz to 2.482GHz
Support 2 x 5G MMCX Connectors and 2x2.4G MMCX
Support 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth
Support 11ABGN/AC
Support fixed data rate
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Our Firmware supports all the modules of Quectel
Support Openwifi
Support QSDK
Support Openwrt
Support 802.11s mesh
| Absolute Maximum Rating |
Parameter | Rating | Unit |
Supply Voltage | 24V~48 | V |
Operating Temperature Range | -40 to +70 | ºC |
Storage Temperature Range | -45 to +105 | ºC |
Operating Humidity Range | 5 to +95 (non-condensing) | % |
Storage Humidity Range | 0 to +90 (non-condensing) | % |
Hardware Specifications |
Symbol | Parameter |
CPU | IPQ4029（Quad core ARM Cortex A7 at 716.8 MHz） |
Antenna Connector | 2 x 5G MMCX connectors;2x2.4G MMCX |
10/100/1000Mbps Gigabit Ethernet | 2xRJ45 |
SFP connector | 1xSFP fiber module connector (optional) |
3G/4G connector | 1xminipcie 3G/4G connector support with two sim card |
USB connector | 1xUSB 3.0 connector |
POE | 24V~48V passive POE |
DC Jack | 24V~48V power supply |
ROHS Compliance | YES |
Dimension | 115mm x 105mm x 16mm |
Max Power | 48.1V x 0.180A= 8.658W |
Nor Flash | 2MB~32MB |
Nand Flash | 128MB |
DDR | 256MB~512MB |
| Radio TX Specifications(5180MHz-5825MHz) |
Operating Mode | Data Rate | Power | Tolerance | |
1 Chain | 2 Chains | |||
802.11a | 6 Mbps | 27dBm | 30dbm | ±2dB |
54 Mbps | 23dBm | 26dbm | ±2dB | |
802.11n HT20 | MCS0, MCS8 | 26dBm | 29dbm | ±2dB |
MCS7, MCS15 | 22dBm | 25dbm | ±2dB | |
802.11n HT40 | MCS0, MCS8 | 25dBm | 28dbm | ±2dB |
MCS7, MCS15 | 21dBm | 24dbm | ±2dB | |
802.11ac | MCS0, MCS10,MCS20 | 25dBm | 28dbm | ±2dB |
MCS9,MCS19,MCS29 | 19dBm | 22dbm | ±2dB | |
Radio RX Specifications(5180MHz-5825MHz) |
Operating Mode | Data Rate | Sensitivity |
802.11a | 6 Mbps | -96dBm |
54 Mbps | -78dBm | |
802.11n HT20 | MCS0, MCS8 | -93dBm |
MCS7, MCS15 | -73dBm | |
802.11n HT40 | MCS0, MCS8 | -90dBm |
MCS7, MCS15 | -70dBm | |
802.11AC HT40 | MCS0, MCS10,MCS20 | -90dBm |
MCS9,MCS19,MCS29 | -67dBm | |
802.11AC HT80 | MCS0, MCS10,MCS20 | -88dBm |
MCS9,MCS19,MCS29 | -62dBm |
Radio TX Specifications(2412MHz-2482MHz) |
Operating Mode | Data Rate | Power | Tolerance | |
1 Chain | 2 Chains | |||
802.11g | 6 Mbps | 27dbm | 30dbm | ±2dB |
54 Mbps | 25dbm | 28dbm | ±2dB | |
802.11n HT20 | MCS0, MCS8 | 26dbm | 29dbm | ±2dB |
MCS7, MCS15 | 25dbm | 28dbm | ±2dB | |
802.11n HT40 | MCS0, MCS8 | 26dbm | 29dbm | ±2dB |
MCS7, MCS15 | 24dbm | 27dbm | ±2dB | |
| Radio RX Specifications(2412MHz-2482MHz) |
Operating Mode | Data Rate | Sensitivity |
802.11g | 6 Mbps | -96dBm |
54 Mbps | -78dBm | |
802.11n HT20 | MCS0, MCS8 | -93dBm |
MCS7, MCS15 | -73dBm | |
802.11n HT40 | MCS0, MCS8 | -90dBm |
MCS7, MCS15 | -70dBm |

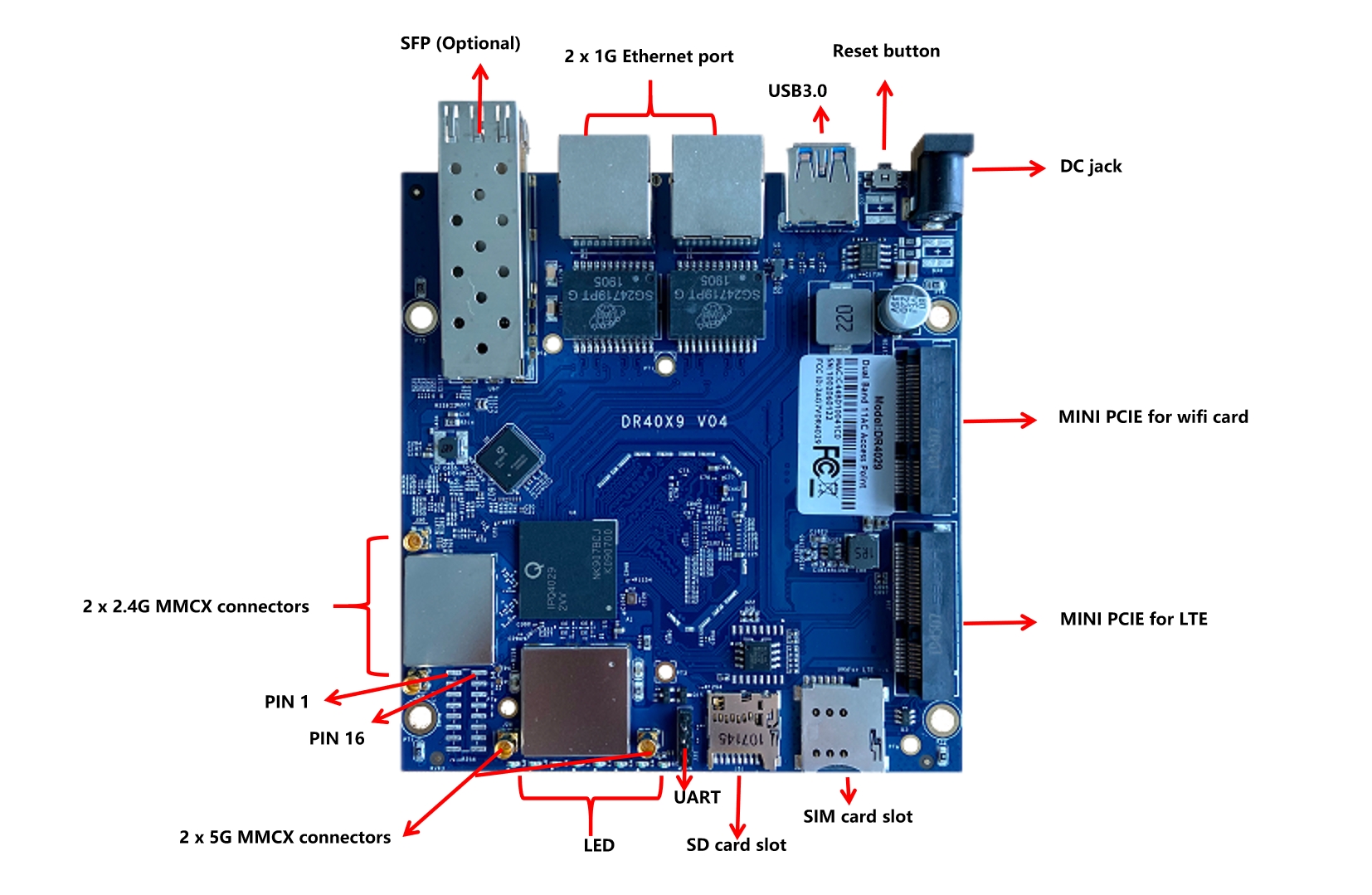

| Interface MAP |
| Version |
Item | Information |
DR40X9-1 | CPU is IPQ4019 |
DR40X9-2 | CPU is IPQ4029 |
| LED & GPIO header |
Item | Information | Note |
1 | PWR LED |
|
2 | Eth1 LED |
|
3 | Eth2 LED |
|
4 | 2.4G LED | GPIO32 |
5 | 5G LED | GPIO50 |
6 | Strength LED | GPIO36 |
7 | Strength LED | GPIO39 |
8 | NC |
|
9 | GND |
|
10 | Uart1_TX | GPIO8 |
11 | Uart1_RX | GPIO9 |
12 | NC |
|
13 | NC |
|
14 | NC |
|
15 | NC |
|
16 | PWR | 3.3v |
| Serial Port |
Item | Information |
1 | PWR |
2 | Uart0 TX |
3 | Uart0 RX |
4 | GND |
| GPIO |
Item | Information |
GPIO11 | Control for the switch of SIM cards |
