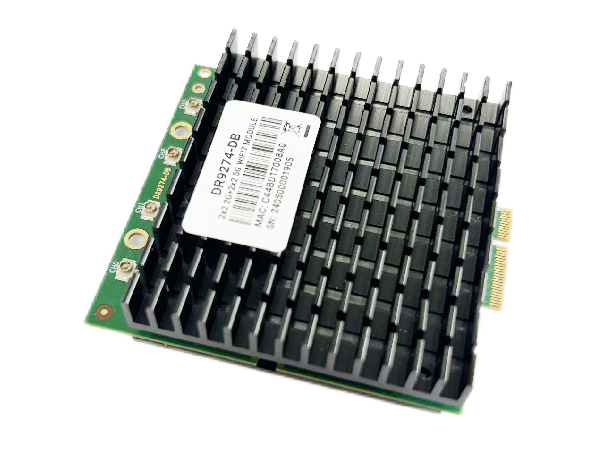

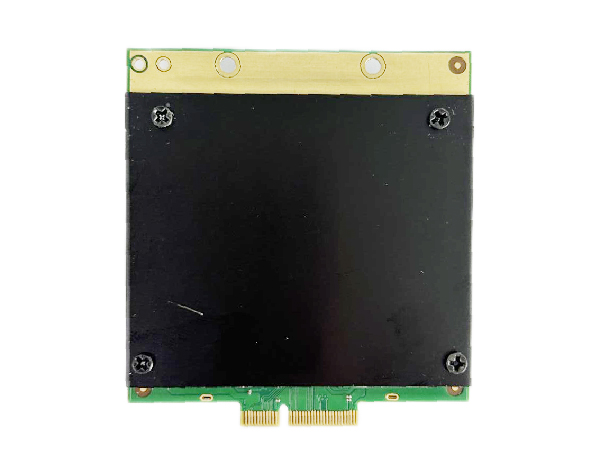

Features

■ Qualcomm Atheros QCN6274;

■ Qualcomm Atheros QCN9274 for Industrial Grade;

■ Maxim Tx power 22dBm per chain;

■ 2×2 2.4GHz MU-MIMO, up to 1376Mbps physical data rate;

■ 2×2 5GHz MU-MIMO, up to 5765Mbps physical data rate;

■ Support up to 4096-QAM;

■ M.2 connector;

■ PCI Express 3 .0 Interface

Applications

■ Security Surveillance

■ Commercial radio coverage

■ Hotel Wireless application

■ Forest fire protection engineering

■ Country coverage

■ Some special scene application

Absolute Maximum Rating

Parameter	Rating	Unit
Operating Temperature Range	-20 ~ 70	oC
Storage Temperature Range	-40 ~ 85	oC
Operating Humidity Range	5 ~ 95 (non-condensing)	%
Storage Humidity Range	0 ~ 90 (non-condensing)	%

Hardware Specifications

Symbol	Parameter
Chipset	Qualcomm Atheros QCN9274(QCN6274)
WLAN Host Interface	PCI Express 3.0 Interface
System Memory	2Mbit serial I2C bus EEPROM
Standard Operating Voltage	5V
Operating Systems	QSDK
Host Interface	4 x M.2 E Key interface with PCIe 3.0
Antenna Cable / Port	4 x UFL Connectors
Frequency Range	2.4GHz: 2.412~2.472GHz 5GHz: 5.15~5.825GHz
Data Rates for WLAN	2.4GHz 802.11b/g/n/ax/be, max 22dBm per chain 5GHz 802.11a/n/ax/be, max 22dBm per chain
Channel Spectrum Widths for WLAN	Supports 20/40MHz at 2.4GHz Supports 20/40/80/160MHz at 5GHz
Modulation Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM,1024QAM, 4096QAM
Temperature Range	Operating: -20 °C to 70 °C, Storage: -40 °C to 85 °C
Humidity	Operating: 5% to 95%, Storage: Max. 90%
Certification	REACH & RoHS Compliance
Power Consumption	10W（Maximum），8W(Normally)

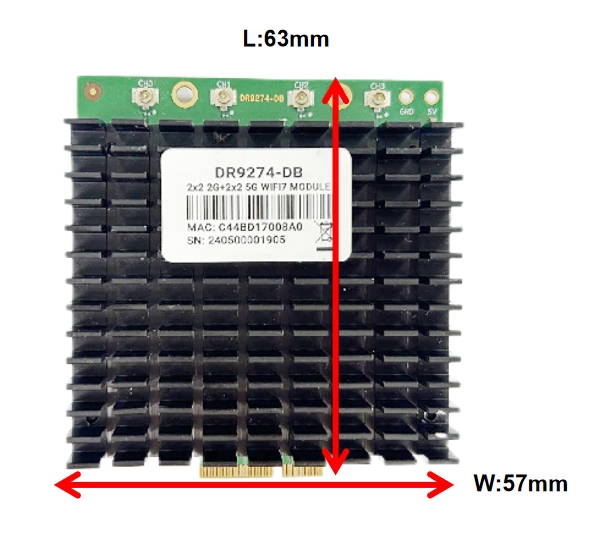

Dimensions (WxHxD)	30mm x 50mm x 14.5mm

RF Performance Table at 2.4GHz

Operating Mode	Data Rate	TX Power		RX Specificatios Sensitivity	Tolerance
Operating Mode	Data Rate	per Chain	2 Chains	RX Specificatios Sensitivity	Tolerance
2.4GHz 802.11be ETH20	MCS0	22dBm	25dBm	-93dBm	±2dB
	MCS1	22dBm	25dBm	-91dBm	±2dB
	MCS2	22dBm	25dBm	-88dBm	±2dB
	MCS3	22dBm	25dBm	-85dBm	±2dB
	MCS4	20dBm	23dBm	-82dBm	±2dB
	MCS5	20dBm	23dBm	-79dBm	±2dB
	MCS6	20dBm	23dBm	-77dBm	±2dB
	MCS7	20dBm	23dBm	-75dBm	±2dB
	MCS8	18.5dBm	21.5dBm	-71dBm	±2dB
	MCS9	18.5dBm	21.5dBm	-68dBm	±2dB
	MCS10	17.5dBm	20.5dBm	-66dBm	±2dB
	MCS11	17.5dBm	20.5dBm	-63dBm	±2dB
	MCS12	17dBm	20dBm	-60dBm	±2dB
	MCS13	17dBm	20dBm	-57dBm	±2dB
2.4GHz 802.11be ETH40	MCS0	21dBm	24dBm	-91dBm	±2dB
	MCS1	21dBm	24dBm	-89dBm	±2dB
	MCS2	21dBm	24dBm	-86dBm	±2dB
	MCS3	21dBm	24dBm	-83dBm	±2dB
	MCS4	20dBm	23dBm	-80dBm	±2dB
	MCS5	20dBm	23dBm	-76dBm	±2dB
	MCS6	19.5dBm	22.5dBm	-74dBm	±2dB
	MCS7	19.5dBm	22.5dBm	-72dBm	±2dB
	MCS8	18.5dBm	21.5dBm	-69dBm	±2dB
	MCS9	18.5dBm	21.5dBm	-67dBm	±2dB
	MCS10	17.5dBm	20.5dBm	-63dBm	±2dB
	MCS11	17.5dBm	20.5dBm	-60dBm	±2dB
	MCS12	17dBm	20dBm	-57dBm	±2dB
	MCS13	17dBm	20dBm	-55dBm	±2dB
