DR-AP6018-S(Outdoor)

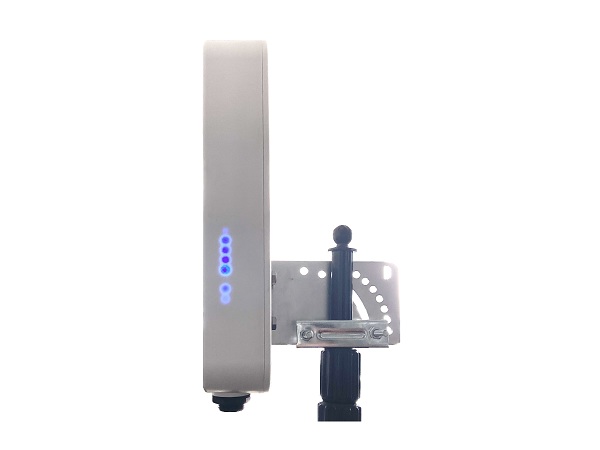

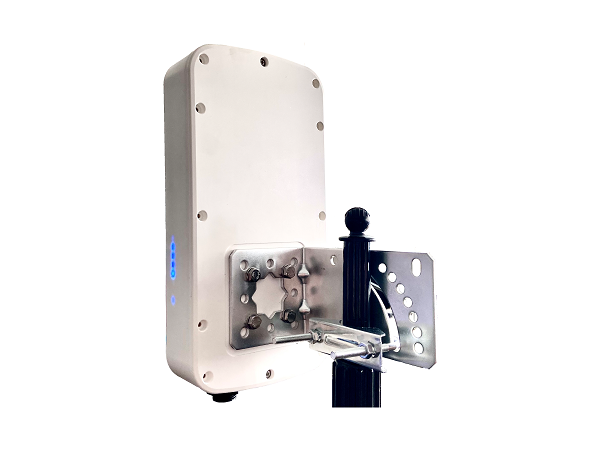

Description

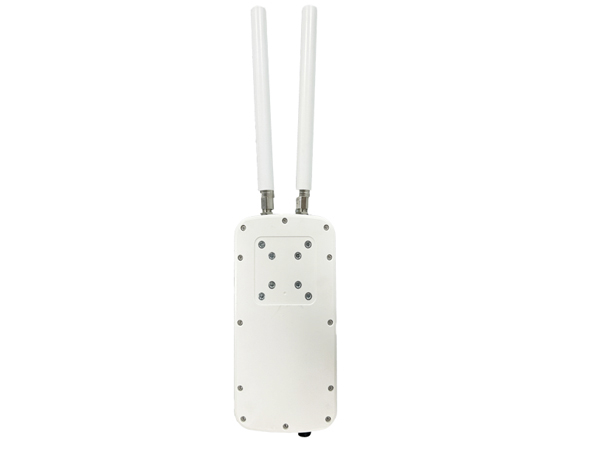

DR-AP6018-S(Outdoor) is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR6018-S Board;1 x  Onmi Antenna; 1 x POE Adapter(24V^1A~48V^0.6A);1 x Enclosure.

Planar Antenna

■  2 x 5G Antenna

■  5G: 16dbi

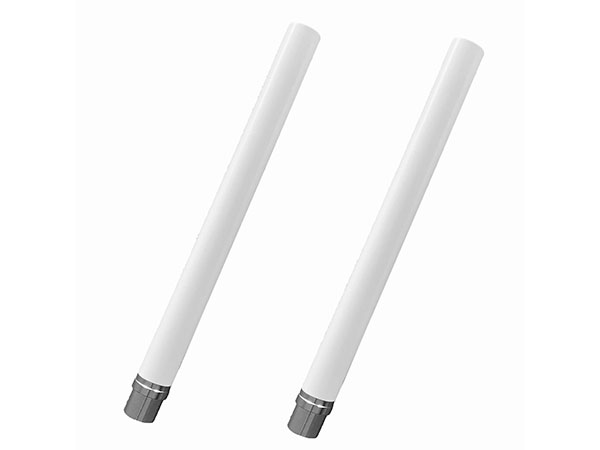

DRA25 Antenna

ElectricalProperties :

Frequency Range:2.4~2.5&5.15~5.85GHz

Impedance:50Ω

VSWR:2.0 Max (≤2.0)

Gain(peak):6±0.5dBi

Polarization:Linear; Vertical

Physical Properties :

Cable:RG-141 Cable

Connector:N-type PLUG

Antenna CAP:ABS

OperatingTemp:-40℃~+65℃

Storage Temp:-40℃~+75℃

CableTemp:<+250℃

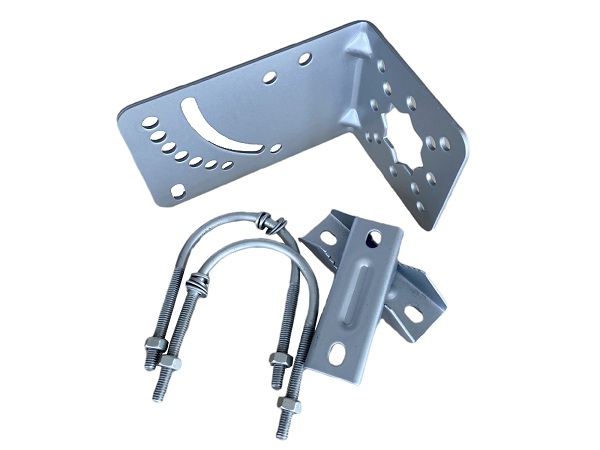

Enclosure

■  Dimension: 275x140x48mm

■  UV Protected and Durable ABS Radome

■  IP67 Waterproof Level

■  Support Wallys’DR6018-S

Support Openwifi

Support QSDK


    • SPECIFICATIONS
    • SUPPORT&DOWNLOADS
       Absolute Maximum Rating


      Parameter

      Rating

      Unit

      Supply Voltage

      24V~48V(DC Jack)

      V

      Operating Temperature Range

      -40 to +70

      ºC

      Storage Temperature Range

      -45 to +105

      ºC

      Operating Humidity Range

      5 to +95 (non-condensing)

      %


        Hardware Specifications


      Symbol

      Parameter

      CPU

      Qualcomm-Atheros IPQ6010

      CPU Frequency

      Quad-core ARM 64 bit A53 @1.8 GHz processor

      System Memory

      1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design

      Ethernet Port

      x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports

      NGFF Slot

      M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module)

      SD Card Slot

      1x SD Card Slot(Option)

      USB /header

      1x USB 3.0 Port(Option)

      POE

      24V~48V passive POE/Active POE(Suport 802.3bt)

      DC Jack

      24V~48V power supply

      LED header

      2.0 pitch pin header

      Serial Port

      1x Serial Port 4 Pin Connector

      Wireless

      On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain

      On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain

      4 x MMCX Connectors

      Nor Flash

      8MB

      Nand Flash

      256MB

      DDR

      256MB~512MB

      Dimension

      125mm x 105mm x 20mm




      Radio TX Specifications(5180MHz-5825MHz)


      Operating Mode

      Data Rate

      Power

      Tolerance

      1 Chain

      2 Chains

      5Ghz 802.11ax HE20

      MCS0

      27dBm

      30dbm

      ±2dB

      MCS1

      26dBm

      29dBm

      ±2dB

      MCS2

      26dBm

      29dBm

      ±2dB

      MCS3

      26dBm

      29dBm

      ±2dB

      MCS4

      25dBm

      28dBm

      ±2dB

      MCS5

      24dBm

      27dBm

      ±2dB

      MCS6

      23dBm

      26dBm

      ±2dB

      MCS7

      21dBm

      24dBm

      ±2dB

      MCS8

      20dBm

      23dBm

      ±2dB

      MCS9

      20dBm

      23dBm

      ±2dB

      MCS10

      20dBm

      23dBm

      ±2dB

      MCS11

      19dBm

      22dbm

      ±2dB

      5Ghz 802.11ax HE400

      MCS0

      27dBm

      30dbm

      ±2dB

      MCS1

      26dBm

      29dBm

      ±2dB

      MCS2

      26dBm

      29dBm

      ±2dB

      MCS3

      26dBm

      29dBm

      ±2dB

      MCS4

      25dBm

      28dBm

      ±2dB

      MCS5

      24dBm

      27dBm

      ±2dB

      MCS6

      23dBm

      26dBm

      ±2dB

      MCS7

      21dBm

      24dBm

      ±2dB

      MCS8

      20dBm

      23dBm

      ±2dB

      MCS9

      20dBm

      23dBm

      ±2dB

      MCS10

      20dBm

      23dBm

      ±2dB

      MCS11

      19dBm

      22dbm

      ±2dB

      5Ghz 802.11ax HE80

      MCS0

      27dBm

      30dbm

      ±2dB

      MCS1

      26dBm

      29dBm

      ±2dB

      MCS2

      26dBm

      29dBm

      ±2dB

      MCS3

      26dBm

      29dBm

      ±2dB

      MCS4

      25dBm

      28dBm

      ±2dB

      MCS5

      24dBm

      27dBm

      ±2dB

      MCS6

      23dBm

      26dBm

      ±2dB

      MCS7

      21dBm

      24dBm

      ±2dB

      MCS8

      20dBm

      23dBm

      ±2dB

      MCS9

      20dBm

      23dBm

      ±2dB

      MCS10

      20dBm

      23dBm

      ±2dB

      MCS11

      19dBm

      22dbm

      ±2dB


        Radio TX Specifications(2412MHz-2482MHz)


      Operating Mode

      Data Rate

      Power

      Tolerance

      1 Chain

      2 Chains

      2.4Ghz 802.11ax HE20

      MCS0

      27dbm

      30dbm

      ±2dB

      MCS1

      26dBm

      29dBm

      ±2dB

      MCS2

      26dBm

      29dBm

      ±2dB

      MCS3

      26dBm

      29dBm

      ±2dB

      MCS4

      25dBm

      28dBm

      ±2dB

      MCS5

      24dBm

      27dBm

      ±2dB

      MCS6

      23dBm

      26dBm

      ±2dB

      MCS7

      21dBm

      24dBm

      ±2dB

      MCS8

      20dBm

      23dBm

      ±2dB

      MCS9

      20dBm

      23dBm

      ±2dB

      MCS10

      20dBm

      23dBm

      ±2dB

      MCS11

      19dbm

      22dbm

      ±2dB

      2.4Ghz 802.11ax HE40

      MCS0

      27dbm

      30dbm

      ±2dB

      MCS1

      26dBm

      29dBm

      ±2dB

      MCS2

      26dBm

      29dBm

      ±2dB

      MCS3

      26dBm

      29dBm

      ±2dB

      MCS4

      25dBm

      28dBm

      ±2dB

      MCS5

      24dBm

      27dBm

      ±2dB

      MCS6

      23dBm

      26dBm

      ±2dB

      MCS7

      21dBm

      24dBm

      ±2dB

      MCS8

      20dBm

      23dBm

      ±2dB

      MCS9

      20dBm

      23dBm

      ±2dB

      MCS10

      20dBm

      23dBm

      ±2dB

      MCS11

      19dbm

      22dbm

      ±2dB


       GPIO Pin Mapping


      GPIO Pin Mapping

      Pin

      Signal

      Pin

      Signal

      GPIO_0

      AUDIO_MUTE_BUT

      GPIO_1

      QPIC_BUSY_N

      GPIO_2

      MIC_VOL_M

      GPIO_3

      QPIC_WE_N

      GPIO_4

      QPIC_RE_N

      GPIO_5

      QPIC_DAT4

      GPIO_6

      QPIC_DAT5

      GPIO_7

      QPIC_DAT6

      GPIO_8

      QPIC_DAT7

      GPIO_9

      WPS

      GPIO_10

      QPIC_CLE_N

      GPIO_11

      QPIC_NAND_CE_N

      GPIO_12

      QPIC_DAT1

      GPIO_13

      QPIC_DAT2

      GPIO_14

      QPIC_DAT3

      GPIO_15

      QPIC_DAT0

      GPIO_16

      MIC_KPD_PWR_N

      GPIO_17

      QPIC_ALE

      GPIO_18

      KYPD_HOME_N

      GPIO_19

      GND

      GPIO_20

      Boot_Config(PULL_DOWN)

      GPIO_21

      MUTE_ON

      GPIO_22

      ADC_RST

      GPIO_23

      WSA_SWR_CLK

      GPIO_24

      WSA_SWR_DATA

      GPIO_25

      PWM_LED_RST

      GPIO_26

      Boot_Config(PULL_DOWN)

      GPIO_27

      WSA_EN_R

      GPIO_28

      WSA_EN_L

      GPIO_29

      PDM_CLK0

      GPIO_30

      PDM_DATA0

      GPIO_31

      PDM_CLK1

      GPIO_32

      PDM_DATA1

      GPIO_33

      EXT_MCLK2_ADC

      GPIO_34

      MIC_VOL_P

      GPIO_35

      LED_5G

      GPIO_36

      PCIE0_WAKE

      GPIO_37

      LED_2GS

      GPIO_38

      SPI0_CLK

      GPIO_39

      SPI0_CS_NI

      GPIO_40

      SPI0_MISO

      GPIO_41

      SPI0_MOSI

      GPIO_42

      BLSP2_SCL

      GPIO_43

      BLSP2_SDA

      GPIO_44

      BLSP2_UART_RX

      GPIO_45

      BLSP2_UART_TX

      GPIO_46

      BLSP5_SCL

      GPIO_47

      BLSP5_SDA

      GPIO_48

      NC

      GPIO_49

      Boot_Config(PULL_DOWN)

      GPIO_50

      LED_USB0

      GPIO_51

      BT_PRIORITY_PTA11

      GPIO_52

      WLA_ACTI_PTA12

      GPIO_53

      BT_ACT_PTA10

      GPIO_54

      Boot_Config(PULL_DOWN)

      GPIO_55

      NC

      GPIO_56

      NC

      GPIO_57

      NC

      GPIO_58

      NC

      GPIO_59

      PCIE0_CLK_REQ

      GPIO_60

      PCIE0_RSTn

      GPIO_61

      NC

      GPIO_62

      SD_DET

      GPIO_63

      SD_WP

      GPIO_64

      MDC

      GPIO_65

      MDIO

      GPIO_66

      SD_LDO_EN

      GPIO_67

      NC

      GPIO_68

      NC

      GPIO_69

      SPI_CLK_UART_RTSn

      GPIO_70

      SPI_CS_UART_CTSn

      GPIO_71

      SPI_MISO_UART_RX

      GPIO_72

      SPI_MOSI_UART_TX

      GPIO_73

      USB_OTG

      GPIO_74

      NC

      GPIO_75

      Malibu_RESET

      GPIO_76

      NAPA_INT0

      GPIO_77

      NAPA_RESET

      GPIO_78

      QTZ_INT

      GPIO_79

      QTZ_RESET


       Boot Config Switch


      Boot_Config Switch1(S7)

      Boot_Config

      Boot up Interface Select

      S7A

      S7B

      S7C


      0

      0

      0

      SPI NOR. (Default)

      0

      0

      1

      eMMC

      0

      1

      0

      QPIC, Parallel NAND

      0

      1

      1

      USB3.0

      1

      0

      0

      SPI-NOR-GPT

      S7D

      Boot up Interface Select

      0

      Boot from code ram.(Default)

      1

      Boot from ROM

      Boot_Config Switch2(S9)

      Boot_Config

      Boot up Interface Select

      0

      No auth.(Default)

      1

      Auth is required
