Description
DR-AP6018-S-A is a 2x2 2.4G&5G high power Radio AP；
1 x Enclosure.
Dipole antenna
■ 2 x 2.4G&5G Antenna
■ 5dBi 2.4GHz/5Ghz
■ SMA Plug interface
■ Plastic rod of black
■ RoHS compliance
Enclosure
■ Dimension: 133x 128 x 44 mm
■ Aluminum alloy material
■ Two Version:
DR-AP6018-S-AB (color black)
DR-AP6018-S-AO (color orange)

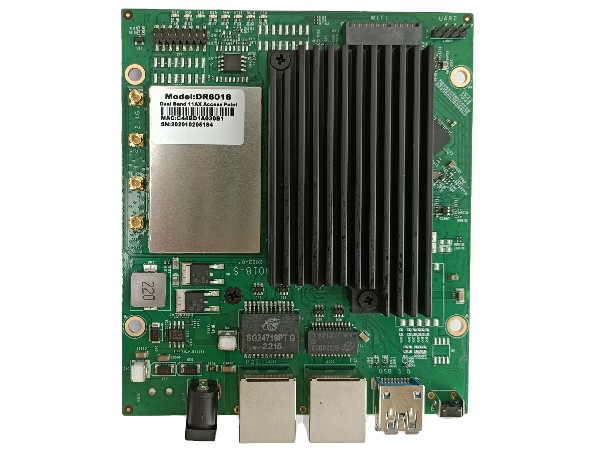

■ Support Wally DR6018-S
Support Openwifi
Support QSDK
| Absolute Maximum Rating |
Parameter | Rating | Unit |
Supply Voltage | 24V~48V(DC Jack) | V |
Operating Temperature Range | -40 to +70 | ºC |
Storage Temperature Range | -45 to +105 | ºC |
Operating Humidity Range | 5 to +95 (non-condensing) | % |
| Hardware Specifications |
Symbol | Parameter |
CPU | Qualcomm-Atheros IPQ6010 |
CPU Frequency | Quad-core ARM 64 bit A53 @1.8 GHz processor |
System Memory | 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design |
Ethernet Port | 1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports |
NGFF Slot | M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module) |
SD Card Slot | 1x SD Card Slot(Option) |
USB /header | 1x USB 3.0 Port(Option) |
POE | 24V~48V passive POE/Active POE(Suport 802.3bt) |
DC Jack | 24V~48V power supply |
LED header | 2.0 pitch pin header |
Serial Port | 1x Serial Port 4 Pin Connector |
Wireless | On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4 x MMCX Connectors |
Nor Flash | 8MB |
Nand Flash | 256MB |
DDR | 256MB~512MB |
Dimension | 133mm x 128mm x 44mm |
Radio TX Specifications(5180MHz-5825MHz) |
Operating Mode | Data Rate | Power | Tolerance | |
1 Chain | 2 Chains | |||
5Ghz 802.11ax HE20 | MCS0 | 27dBm | 30dbm | ±2dB |
MCS1 | 26dBm | 29dBm | ±2dB | |
MCS2 | 26dBm | 29dBm | ±2dB | |
MCS3 | 26dBm | 29dBm | ±2dB | |
MCS4 | 25dBm | 28dBm | ±2dB | |
MCS5 | 24dBm | 27dBm | ±2dB | |
MCS6 | 23dBm | 26dBm | ±2dB | |
MCS7 | 21dBm | 24dBm | ±2dB | |
MCS8 | 20dBm | 23dBm | ±2dB | |
MCS9 | 20dBm | 23dBm | ±2dB | |
MCS10 | 20dBm | 23dBm | ±2dB | |
MCS11 | 19dBm | 22dbm | ±2dB | |
5Ghz 802.11ax HE400 | MCS0 | 27dBm | 30dbm | ±2dB |
MCS1 | 26dBm | 29dBm | ±2dB | |
MCS2 | 26dBm | 29dBm | ±2dB | |
MCS3 | 26dBm | 29dBm | ±2dB | |
MCS4 | 25dBm | 28dBm | ±2dB | |
MCS5 | 24dBm | 27dBm | ±2dB | |
MCS6 | 23dBm | 26dBm | ±2dB | |
MCS7 | 21dBm | 24dBm | ±2dB | |
MCS8 | 20dBm | 23dBm | ±2dB | |
MCS9 | 20dBm | 23dBm | ±2dB | |
MCS10 | 20dBm | 23dBm | ±2dB | |
MCS11 | 19dBm | 22dbm | ±2dB | |
5Ghz 802.11ax HE80 | MCS0 | 27dBm | 30dbm | ±2dB |
MCS1 | 26dBm | 29dBm | ±2dB | |
MCS2 | 26dBm | 29dBm | ±2dB | |
MCS3 | 26dBm | 29dBm | ±2dB | |
MCS4 | 25dBm | 28dBm | ±2dB | |
MCS5 | 24dBm | 27dBm | ±2dB | |
MCS6 | 23dBm | 26dBm | ±2dB | |
MCS7 | 21dBm | 24dBm | ±2dB | |
MCS8 | 20dBm | 23dBm | ±2dB | |
MCS9 | 20dBm | 23dBm | ±2dB | |
MCS10 | 20dBm | 23dBm | ±2dB | |
MCS11 | 19dBm | 22dbm | ±2dB | |
| Radio TX Specifications(2412MHz-2482MHz) |
Operating Mode | Data Rate | Power | Tolerance | |
1 Chain | 2 Chains | |||
2.4Ghz 802.11ax HE20 | MCS0 | 27dbm | 26dbm | ±2dB |
MCS1 | 26dBm | 26dBm | ±2dB | |
MCS2 | 26dBm | 26dBm | ±2dB | |
MCS3 | 26dBm | 26dBm | ±2dB | |
MCS4 | 25dBm | 26dBm | ±2dB | |
MCS5 | 24dBm | 26dBm | ±2dB | |
MCS6 | 23dBm | 26dBm | ±2dB | |
MCS7 | 21dBm | 25dBm | ±2dB | |
MCS8 | 20dBm | 24dBm | ±2dB | |
MCS9 | 20dBm | 24dBm | ±2dB | |
MCS10 | 20dBm | 21dBm | ±2dB | |
MCS11 | 19dbm | 20dbm | ±2dB | |
2.4Ghz 802.11ax HE40 | MCS0 | 27dbm | 26dbm | ±2dB |
MCS1 | 26dBm | 26dBm | ±2dB | |
MCS2 | 26dBm | 26dBm | ±2dB | |
MCS3 | 26dBm | 26dBm | ±2dB | |
MCS4 | 25dBm | 26dBm | ±2dB | |
MCS5 | 24dBm | 26dBm | ±2dB | |
MCS6 | 23dBm | 26dBm | ±2dB | |
MCS7 | 21dBm | 25dBm | ±2dB | |
MCS8 | 20dBm | 24dBm | ±2dB | |
MCS9 | 20dBm | 24dBm | ±2dB | |
MCS10 | 20dBm | 24dBm | ±2dB | |
MCS11 | 19dbm | 22dbm | ±2dB | |
| GPIO Pin Mapping |
GPIO Pin Mapping | |||
Pin | Signal | Pin | Signal |
GPIO_0 | AUDIO_MUTE_BUT | GPIO_1 | QPIC_BUSY_N |
GPIO_2 | MIC_VOL_M | GPIO_3 | QPIC_WE_N |
GPIO_4 | QPIC_RE_N | GPIO_5 | QPIC_DAT4 |
GPIO_6 | QPIC_DAT5 | GPIO_7 | QPIC_DAT6 |
GPIO_8 | QPIC_DAT7 | GPIO_9 | WPS |
GPIO_10 | QPIC_CLE_N | GPIO_11 | QPIC_NAND_CE_N |
GPIO_12 | QPIC_DAT1 | GPIO_13 | QPIC_DAT2 |
GPIO_14 | QPIC_DAT3 | GPIO_15 | QPIC_DAT0 |
GPIO_16 | MIC_KPD_PWR_N | GPIO_17 | QPIC_ALE |
GPIO_18 | KYPD_HOME_N | GPIO_19 | GND |
GPIO_20 | Boot_Config(PULL_DOWN) | GPIO_21 | MUTE_ON |
GPIO_22 | ADC_RST | GPIO_23 | WSA_SWR_CLK |
GPIO_24 | WSA_SWR_DATA | GPIO_25 | PWM_LED_RST |
GPIO_26 | Boot_Config(PULL_DOWN) | GPIO_27 | WSA_EN_R |
GPIO_28 | WSA_EN_L | GPIO_29 | PDM_CLK0 |
GPIO_30 | PDM_DATA0 | GPIO_31 | PDM_CLK1 |
GPIO_32 | PDM_DATA1 | GPIO_33 | EXT_MCLK2_ADC |
GPIO_34 | MIC_VOL_P | GPIO_35 | LED_5G |
GPIO_36 | PCIE0_WAKE | GPIO_37 | LED_2GS |
GPIO_38 | SPI0_CLK | GPIO_39 | SPI0_CS_NI |
GPIO_40 | SPI0_MISO | GPIO_41 | SPI0_MOSI |
GPIO_42 | BLSP2_SCL | GPIO_43 | BLSP2_SDA |
GPIO_44 | BLSP2_UART_RX | GPIO_45 | BLSP2_UART_TX |
GPIO_46 | BLSP5_SCL | GPIO_47 | BLSP5_SDA |
GPIO_48 | NC | GPIO_49 | Boot_Config(PULL_DOWN) |
GPIO_50 | LED_USB0 | GPIO_51 | BT_PRIORITY_PTA11 |
GPIO_52 | WLA_ACTI_PTA12 | GPIO_53 | BT_ACT_PTA10 |
GPIO_54 | Boot_Config(PULL_DOWN) | GPIO_55 | NC |
GPIO_56 | NC | GPIO_57 | NC |
GPIO_58 | NC | GPIO_59 | PCIE0_CLK_REQ |
GPIO_60 | PCIE0_RSTn | GPIO_61 | NC |
GPIO_62 | SD_DET | GPIO_63 | SD_WP |
GPIO_64 | MDC | GPIO_65 | MDIO |
GPIO_66 | SD_LDO_EN | GPIO_67 | NC |
GPIO_68 | NC | GPIO_69 | SPI_CLK_UART_RTSn |
GPIO_70 | SPI_CS_UART_CTSn | GPIO_71 | SPI_MISO_UART_RX |
GPIO_72 | SPI_MOSI_UART_TX | GPIO_73 | USB_OTG |
GPIO_74 | NC | GPIO_75 | Malibu_RESET |
GPIO_76 | NAPA_INT0 | GPIO_77 | NAPA_RESET |
GPIO_78 | QTZ_INT | GPIO_79 | QTZ_RESET |
| Boot Config Switch |
Boot_Config Switch1(S7) | |||
Boot_Config | Boot up Interface Select | ||
S7A | S7B | S7C | |
0 | 0 | 0 | SPI NOR. (Default) |
0 | 0 | 1 | eMMC |
0 | 1 | 0 | QPIC, Parallel NAND |
0 | 1 | 1 | USB3.0 |
1 | 0 | 0 | SPI-NOR-GPT |
S7D | Boot up Interface Select | ||
0 | Boot from code ram.(Default) | ||
1 | Boot from ROM | ||
Boot_Config Switch2(S9) | |||
Boot_Config | Boot up Interface Select | ||
0 | No auth.(Default) | ||
1 | Auth is required | ||
| Interface MAP |
