Description
DR-AP4029(Outdoor) is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR40X9(IPQ4019/IPQ4029) Board;1 x Onmi Antenna; 1 x POE Adapter(24V^1A~48V^0.6A);1 x Enclosure.
Planar Antenna
■ 2 x 5G Antenna
■ 5G: 16dbi

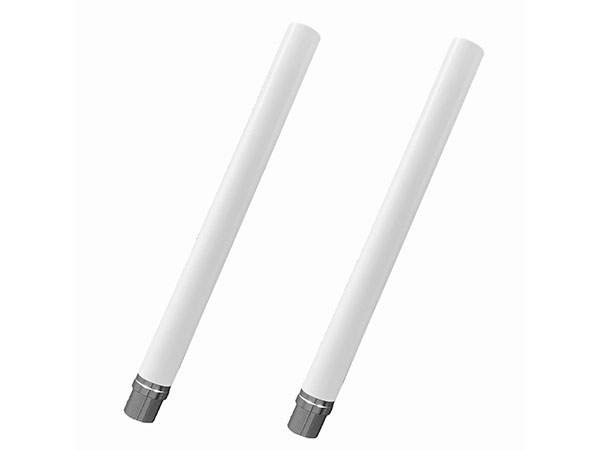

DRA25 Antenna
ElectricalProperties :
Frequency Range：2.4~2.5&5.15~5.85GHz
Impedance：50Ω
VSWR：2.0 Max （≤2.0）
Gain(peak)：6±0.5dBi
Polarization：Linear; Vertical
Physical Properties :
Cable：RG-141 Cable
Connector：N-type PLUG
Antenna CAP：ABS
OperatingTemp：-40℃~+65℃
Storage Temp：-40℃~+75℃
CableTemp：＜+250℃

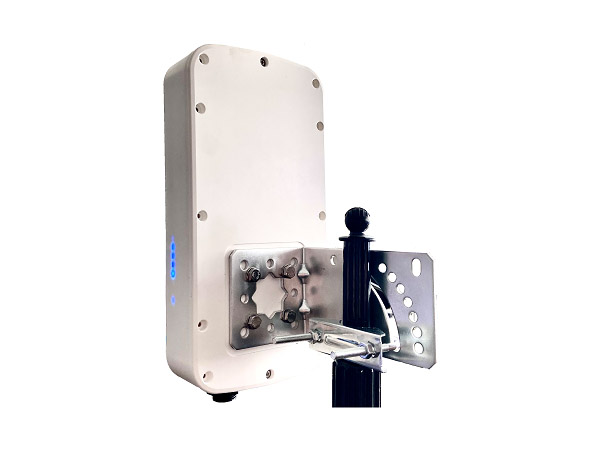

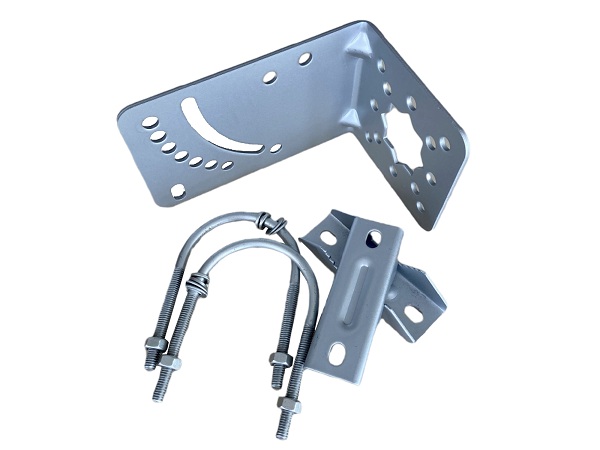

Enclosure
■ Dimension: 275x140x48mm
■ UV Protected and Durable ABS Radome
■ IP67 Waterproof Level
■ Support Wallys’ PCBA Mainboard
| Absolute Maximum Rating |
Parameter | Rating | Unit |
Supply Voltage | 24V~48 | V |
Operating Temperature Range | -40 to +70 | ºC |
Storage Temperature Range | -45 to +105 | ºC |
Operating Humidity Range | 5 to +95 (non-condensing) | % |
Storage Humidity Range | 0 to +90 (non-condensing) | % |
Hardware Specifications |
Symbol | Parameter |
CPU | IPQ4029/IPQ4019（Quad core ARM Cortex A7 at 716.8 MHz） |
Antenna Connector | 2 x 5G MMCX connectors;2x2.4G MMCX |
10/100/1000Mbps Gigabit Ethernet | 2xRJ45 |
SFP connector | 1xSFP fiber module connector (optional) |
3G/4G connector | 1xminipcie 3G/4G connector support with two sim card |
USB connector | 1xUSB 3.0 connector |
POE | 24V~48V passive POE |
DC Jack | 24V~48V power supply |
ROHS Compliance | YES |
Dimension | 115mm x 105mm x 16mm |
Max Power | 48.1V x 0.180A= 8.658W |
Nor Flash | 2MB~32MB |
Nand Flash | 128MB |
DDR | 256MB~512MB |
| Radio TX Specifications(5180MHz-5825MHz) |
Operating Mode | Data Rate | Power | Tolerance | |
1 Chain | 2 Chains | |||
802.11a | 6 Mbps | 27dBm | 30dbm | ±2dB |
54 Mbps | 23dBm | 26dbm | ±2dB | |
802.11n HT20 | MCS0, MCS8 | 26dBm | 29dbm | ±2dB |
MCS7, MCS15 | 22dBm | 25dbm | ±2dB | |
802.11n HT40 | MCS0, MCS8 | 25dBm | 28dbm | ±2dB |
MCS7, MCS15 | 21dBm | 24dbm | ±2dB | |
802.11ac | MCS0, MCS10,MCS20 | 25dBm | 28dbm | ±2dB |
MCS9,MCS19,MCS29 | 19dBm | 22dbm | ±2dB | |
Radio RX Specifications(5180MHz-5825MHz) |
Operating Mode | Data Rate | Sensitivity |
802.11a | 6 Mbps | -96dBm |
54 Mbps | -78dBm | |
802.11n HT20 | MCS0, MCS8 | -93dBm |
MCS7, MCS15 | -73dBm | |
802.11n HT40 | MCS0, MCS8 | -90dBm |
MCS7, MCS15 | -70dBm | |
802.11AC HT40 | MCS0, MCS10,MCS20 | -90dBm |
MCS9,MCS19,MCS29 | -67dBm | |
802.11AC HT80 | MCS0, MCS10,MCS20 | -88dBm |
MCS9,MCS19,MCS29 | -62dBm |
Radio TX Specifications(2412MHz-2482MHz) |
Operating Mode | Data Rate | Power | Tolerance | |
1 Chain | 2 Chains | |||
802.11g | 6 Mbps | 27dbm | 30dbm | ±2dB |
54 Mbps | 25dbm | 28dbm | ±2dB | |
802.11n HT20 | MCS0, MCS8 | 26dbm | 29dbm | ±2dB |
MCS7, MCS15 | 25dbm | 28dbm | ±2dB | |
802.11n HT40 | MCS0, MCS8 | 26dbm | 29dbm | ±2dB |
MCS7, MCS15 | 24dbm | 27dbm | ±2dB | |
| Radio RX Specifications(2412MHz-2482MHz) |
Operating Mode | Data Rate | Sensitivity |
802.11g | 6 Mbps | -96dBm |
54 Mbps | -78dBm | |
802.11n HT20 | MCS0, MCS8 | -93dBm |
MCS7, MCS15 | -73dBm | |
802.11n HT40 | MCS0, MCS8 | -90dBm |
MCS7, MCS15 | -70dBm |
| Version |
Item | Information |
DR40X9-1 | CPU is IPQ4019 |
DR40X9-2 | CPU is IPQ4029 |
| LED & GPIO header |
Item | Information | Note |
1 | PWR LED |
|
2 | Eth1 LED |
|
3 | Eth2 LED |
|
4 | 2.4G LED | GPIO32 |
5 | 5G LED | GPIO50 |
6 | Strength LED | GPIO36 |
7 | Strength LED | GPIO39 |
8 | NC |
|
9 | GND |
|
10 | Uart1_TX | GPIO8 |
11 | Uart1_RX | GPIO9 |
12 | NC |
|
13 | NC |
|
14 | NC |
|
15 | GND |
|
16 | PWR |
| Serial Port |
Item | Information |
1 | PWR |
2 | Uart0 TX |
3 | Uart0 RX |
4 | GND |
| GPIO |
Item | Information |
GPIO11 | Control for the switch of SIM cards |
